Force Page Count

Top Previous Topic Next Topic  Print this topic

XF Rendering Server supports the usage of fo:force-page-count extension.



Force-page-count is used to impose a constraint on the number of pages in a page-sequence. If this constraint is not satisfied, an additional page/pages will be added at the end of the sequence.



The following values are available:



auto

Forces the last page in this page-sequence to be an odd-page if the initial-page-number of the next page-sequence is even.

Forces the last page in this page-sequence to be an even-page if the initial-page-number of the next page-sequence is odd.

If there is no next page-sequence or if the value of its initial-page-number is "auto", the attribute does not force any page.



even

Forces an even number of pages in this page-sequence.



odd

Forces an odd number of pages in this page-sequence.



end-on-even

Forces the last page in this page-sequence to be an even-page.



end-on-odd

Forces the last page in this page-sequence to be an odd-page.



no-force

Does not force either an even or an odd number of pages in this page-sequence.



multiple-of(x)

The behaviour is similar to force-page-count="odd". The number of pages in the sequence will be a multiple of the "x" integer set as value.



end-on-multiple-of(x)

The behaviour is similar to force-page-count="end-on-odd". Forces the last page in this page-sequence to be a multiple of the "x" integer set as value.





Examples of usage:



1. force-page-count="even"





<?xml version="1.0" encoding="utf-8" ?>

<fo:root xmlns:fo="http://www.w3.org/1999/XSL/Format" xmlns:xf="http://www.ecrion.com/xf/1.0" xmlns:xc="http://www.ecrion.com/2008/xc" xmlns:svg="http://www.w3.org/2000/svg" font-family="Times" font-size="12pt">

       <fo:layout-master-set>

               <fo:simple-page-master master-name="Letter Page" page-width="6in" page-height="3in">

                       <fo:region-body region-name="xsl-region-body" margin="0.700in" />

               </fo:simple-page-master>

       </fo:layout-master-set>

       <fo:page-sequence master-reference="Letter Page">

               <fo:flow flow-name="xsl-region-body">

                       <fo:block background="red">Page Sequence 1</fo:block>

                       </fo:flow>

       </fo:page-sequence>

       <fo:page-sequence master-reference="Letter Page" force-page-count="even">

               <fo:flow flow-name="xsl-region-body">

                       <fo:block background="green">Page Sequence 2</fo:block>

               </fo:flow>

       </fo:page-sequence>

</fo:root>





One more page will be added to the last page sequence in order for the respective sequence to have an even number of pages.



Output:

force_page_count_even





2. force-page-count="end-on-even"





<?xml version="1.0" encoding="utf-8" ?>

<fo:root xmlns:fo="http://www.w3.org/1999/XSL/Format" xmlns:xf="http://www.ecrion.com/xf/1.0" xmlns:xc="http://www.ecrion.com/2008/xc" xmlns:svg="http://www.w3.org/2000/svg" font-family="Times" font-size="12pt">

       <fo:layout-master-set>

               <fo:simple-page-master master-name="Letter Page" page-width="6in" page-height="3in">

                       <fo:region-body region-name="xsl-region-body" margin="0.700in" />

               </fo:simple-page-master>

       </fo:layout-master-set>

       <fo:page-sequence master-reference="Letter Page">

               <fo:flow flow-name="xsl-region-body">

                       <fo:block background="red">Page Sequence 1</fo:block>

                       </fo:flow>

       </fo:page-sequence>

       <fo:page-sequence master-reference="Letter Page" force-page-count="end-on-even">

               <fo:flow flow-name="xsl-region-body">

                       <fo:block background="green">Page Sequence 2</fo:block>

               </fo:flow>

       </fo:page-sequence>

</fo:root>





No new page will be added for the second page sequence because the total count of pages is even.



Output:

force_page_count_end_on_even



3. force-page-count="multiple-of(x)"





<?xml version="1.0" encoding="utf-8" ?>

<fo:root xmlns:fo="http://www.w3.org/1999/XSL/Format" xmlns:xf="http://www.ecrion.com/xf/1.0" xmlns:xc="http://www.ecrion.com/2008/xc" xmlns:svg="http://www.w3.org/2000/svg" font-family="Times" font-size="12pt">

       <fo:layout-master-set>

               <fo:simple-page-master master-name="Letter Page" page-width="6in" page-height="3in">

                       <fo:region-body region-name="xsl-region-body" margin="0.700in" />

               </fo:simple-page-master>

       </fo:layout-master-set>

       <fo:page-sequence master-reference="Letter Page">

               <fo:flow flow-name="xsl-region-body">

                       <fo:block background="red">Page Sequence 1</fo:block>

                       </fo:flow>

       </fo:page-sequence>

       <fo:page-sequence master-reference="Letter Page" force-page-count="multiple-of(3)">

               <fo:flow flow-name="xsl-region-body">

                       <fo:block background="green">Page Sequence 2</fo:block>

               </fo:flow>

       </fo:page-sequence>

</fo:root>





Two more pages will be added to the last sequence because its page count must be a multiple of 3.



Output:

force_page_count_multiple_of





4. force-page-count="end-on-multiple-of(x)"





<?xml version="1.0" encoding="utf-8" ?>

<fo:root xmlns:fo="http://www.w3.org/1999/XSL/Format" xmlns:xf="http://www.ecrion.com/xf/1.0" xmlns:xc="http://www.ecrion.com/2008/xc" xmlns:svg="http://www.w3.org/2000/svg" font-family="Times" font-size="12pt">

       <fo:layout-master-set>

               <fo:simple-page-master master-name="Letter Page" page-width="6in" page-height="3in">

                       <fo:region-body region-name="xsl-region-body" margin="0.700in" />

               </fo:simple-page-master>

       </fo:layout-master-set>

       <fo:page-sequence master-reference="Letter Page">

               <fo:flow flow-name="xsl-region-body">

                       <fo:block background="red">Page Sequence 1</fo:block>

               </fo:flow>

       </fo:page-sequence>

       <fo:page-sequence master-reference="Letter Page" force-page-count="end-on-multiple-of(3)">

               <fo:flow flow-name="xsl-region-body">

                       <fo:block background="green">Page Sequence 2</fo:block>

               </fo:flow>

       </fo:page-sequence>

</fo:root>

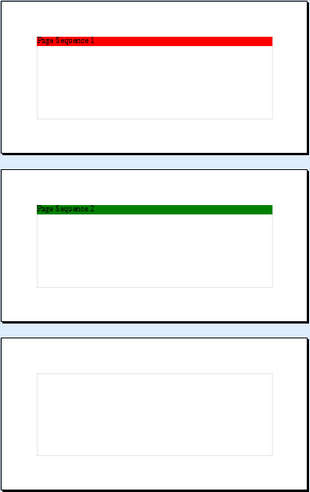

Only one page will be added to the last pages sequence in order for the total number of pages to be a multiple of 3.



Output:

force_page_count_end_on_multiple
